ASTM 3003 3004 3005 3104 3105 3A21 Aluminum Tape / Aluminum Strip

1 ton
MOQ
negotiation
Price
ASTM 3003 3004 3005 3104 3105 3A21 Aluminum Tape / Aluminum Strip
Features Gallery Product Description Request A Quote
Features
Specifications
Name: Aluminum Alloy Coil
Technique: Hot Rolling DC And Cold Rolling Cc
Temper: O - H112
Alloy: Non-Alloy
Width: 40-2650mm
Type: Aluminum Coil
Grade: 1000, 3000, 5000, 6000
Application: Furniture, Doors, Kitchen Appliances
Basic Infomation
Place of Origin: Ningxia ,China
Brand Name: QTX
Certification: EN,GB,ISO
Model Number: ADC12
Payment & Shipping Terms
Packaging Details: 25 tons per 20GP contaner
Delivery Time: 7-10 natural days
Payment Terms: L/C, D/A, D/P, T/T
Supply Ability: 3000tons/month
Product Description

ASTM 3003 3004 3005 3104 3105 3A21 Aluminum Tape / Aluminum Strip

Aluminum coil is cast rolling mill after calendering, pulling and bending angle processing, in order to carry out flying shear metal products. Thermal insulation aluminum skin appearance, good gloss is commonly used in pipeline construction, rock wool, glass wool, aluminum silicate, pipeline insulation of the outer skin construction.
Aluminum coil is widely used in electronics, packaging, construction, machinery and so on.

Type Chemical Composition For several alloys
Si Fe Cu Mn Mg Zn Ti other Al
1060 0.20 0.25 0.30 0.03 0.03 0.03 0.03 0.03 99.60
1050 0.25 0.40 0.05 0.05 0.05 0.05 0.03 0.03 99.50
3003 0.60 0.70 0.05-0.20 1.0-1.5   0.10   0.15 Remain
5052 0.25 0.40 0.10 0.10 2.2-2.8 0.10 ------ 0.2 Remain



Product 1100/3003/3105/5052/6061 Aluminum Alloy Coil for building construction used
Thickness 0.2mm-8mm
Width 100mm-2650mm, the max width we could reached is 2650mm
Length As customer's requirements
Temper temper H, temper O, temper T

Features
Our company mainly doing with 1,2,3,5,6,7 series aluminum sheet/coil.
For different customers' requirements.

Application
1) roof
2) car building
3) curtain wall
4) Shelter
5) oil tank
6) mould
Surface flat, cleaness, without oil
Packing Export standard wooden pallets (as per requirements)
Payment Terms 30% T/T in advance as deposit,70% balance against the B/L copy or 100% irrevocable L/C at sight
Minimum Order Quanlity 5-12 tons pre size
Delivery time 30 days after receiving L/C or deposit
Loading Port any port in China
Remark Specific requirement of alloy grade,temper or specification can be discussed at your request

3 Series Aluminum Coil Material

  3XXX series aluminum coils, is a relatively common product, representative of the 3003 aluminum plate. Generally speaking, the aluminum content of 3 series aluminum coil is 99.8%, and the manganese content is between 1% and 1.5%. 3 series aluminum coil is usually called aluminum-manganese alloy aluminum coil, and because of its alloy content of manganese accounted for more, it is also known as rust-resistant aluminum plate, and so on. 3 series representative material:
3003 aluminum coil, 3a21 aluminum coil, 3004 aluminum coil, 3005 aluminum coil material 3003 aluminum coil alloy composition:    Silicon Si: 0.6, copper Cu: 0.05 - 0.2, zinc Zn: 0.1, manganese Mn: 1.0 - 1., iron Fe: 0.7, alone: 0.05, aluminum, the balance.

5 Series Aluminum Coil Material

  5 series aluminum coil belongs to is only after 1 series 3 series and a piece of more commonly used aluminum coil material. 5 series of representative alloy elements are aluminum, magnesium, manganese alloy. Therefore, many friends of the mouth of the aluminum-magnesium-manganese plate is the 5 series aluminum coil, because the 5 series aluminum coil with aluminum-magnesium-manganese elements, so the use of a wide range of uses, performance is also very good, coupled with the hot rolling and forging process to make the application of the aluminum plate is more widely used. 5 series representative material:
5052 aluminum coil, 5A21 aluminum coil, 5005 aluminum coil, 5083 aluminum coil material 5052 aluminum coil alloy composition:   Aluminum Al: remainder, silicon Si: ≤ 0.25, copper Cu: ≤ 0.10, magnesium Mg: 2.2 ~ 2.8, zinc Zn: ≤ 0.10, manganese Mn: ≤ 0.10, chromium Cr: 0.15 ~ 0.35, iron Fe: ≤ 0.40, Note: individual: ≤ 0.05; Total: ≤ 0.15.

6 Series Aluminum Coil Material

  Magnesium and silicon are the core elements of 6-series aluminum coils. 6-series aluminum coils are cold treated aluminum forging products, so they are also known as aluminum-magnesium-silicon products. Excellent performance, oxidation effect are good, so suitable for a variety of uses in the environment are more appropriate. 6 series representative material:
6061 aluminum coil, 6063 aluminum coil, 6082 aluminum coil material 6061 aluminum coil alloy composition:   Silicon Si: 0.40-0.8, iron Fe: 0.7, copper Cu: 0.15-0.40, manganese Mn: 0.15, magnesium Mg: 0.8-1.2, chromium Cr: 0.04-0.35, zinc Zn: 0.25, titanium Ti: 0.15, aluminum Al: the balance of the other: individual: 0.05 Total: 0.15.

OUR Factory

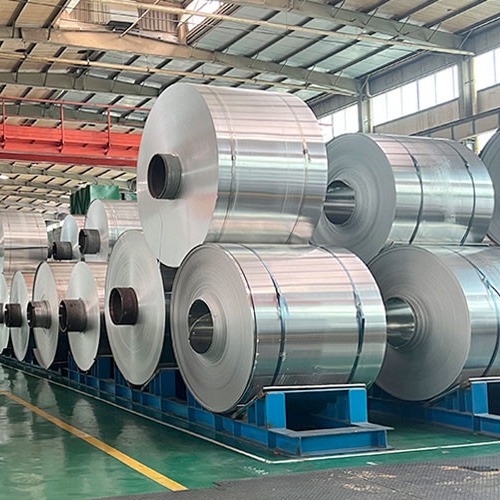

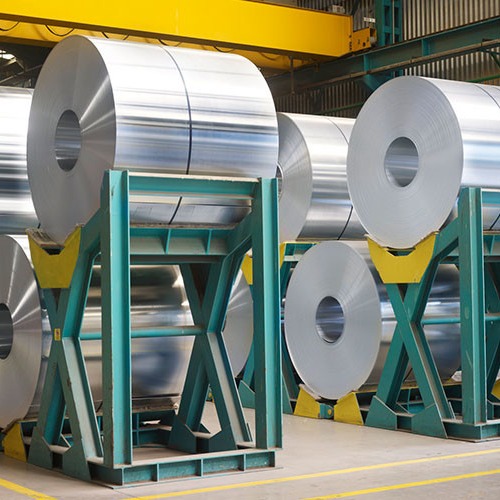

ASTM 3003 3004 3005 3104 3105 3A21 Aluminum Tape / Aluminum Strip 0

ASTM 3003 3004 3005 3104 3105 3A21 Aluminum Tape / Aluminum Strip 1

ASTM 3003 3004 3005 3104 3105 3A21 Aluminum Tape / Aluminum Strip 2



Product Display


ASTM 3003 3004 3005 3104 3105 3A21 Aluminum Tape / Aluminum Strip 3

ASTM 3003 3004 3005 3104 3105 3A21 Aluminum Tape / Aluminum Strip 4ASTM 3003 3004 3005 3104 3105 3A21 Aluminum Tape / Aluminum Strip 5ASTM 3003 3004 3005 3104 3105 3A21 Aluminum Tape / Aluminum Strip 6ASTM 3003 3004 3005 3104 3105 3A21 Aluminum Tape / Aluminum Strip 7ASTM 3003 3004 3005 3104 3105 3A21 Aluminum Tape / Aluminum Strip 8

ASTM 3003 3004 3005 3104 3105 3A21 Aluminum Tape / Aluminum Strip 9ASTM 3003 3004 3005 3104 3105 3A21 Aluminum Tape / Aluminum Strip 10ASTM 3003 3004 3005 3104 3105 3A21 Aluminum Tape / Aluminum Strip 11ASTM 3003 3004 3005 3104 3105 3A21 Aluminum Tape / Aluminum Strip 12





Applications


ASTM 3003 3004 3005 3104 3105 3A21 Aluminum Tape / Aluminum Strip 13



FAQ



1. Q: Are you a manufacturer or trading company?
A: We are a professional manufacturer with 1.5 million tons of aluminum annually in China. We have passed the factory inspection by various international organizations and have our own sales team. Welcome to seeing and inspecting our factory

2. Q: Do you have quality control system?
A: Yes,we have iso,bv,sgs certifications and our own quality contorl laboratory.

3. Q: How long is your delivery time?

A: Within 7-15 days after receiving the deposit or L/C at sight. Longer lead time will be required for special designed products.

4. Q: Do you provide samples ? is it free or extra ?
A:Yes, we could offer the sample for free charge but the delivery charges will be covered by our customers.

5. Q: Do you provide after-sale service?
A: We provide after-sales service and offer 100% guarantee on our products.
