Aluminum Coil
|
|||||
|
Aluminium Alloy
|
Thickness
(mm) |
Width
(mm) |
Temper
|
||
|
A1050,A1060,A1070,A1100
|
0.2-8.0
|
20-2300
|
O,H12,H14,H16,H18,H22,H24,H26
|
||
|
A3003,A3004,A3105
|
0.2-8.0
|
20-2300
|
O,H12,H14,H16,H18,H22,H24,H26
|
||
|
A5052,A5005,A5083,A5754
|
0.2-8.0
|
20-2300
|
O,H12,H14,H34,H32,H36,H111,H112
|
||
|
A6061,A6082,A6063
|
0.2-8.0
|
20-2300
|
T4,T6,T651
|
||
|
A8011
|
0.2-8.0
|
20-2300
|
O,H12,H14,H16,H18,H22,H24,H26
|
||
|
Material process
|
CC AND DC
|
||||
|
Customerize size
|
Size can be produced as per clients requirement
|
||||
|
Surface
|
Mill finish ,Color coated(PVDF& PE),Stucco Embossed ,Bright Polish,Anodizing
|
||||
|
Mirror,Brush,Perforated,Tread plate ,Corrugated etc
|
|||||
|
Quality Standard
|
ASTM B209,EN573-1
|
||||
|
MOQ per size
|
1 ton
|
||||
|
Payment Terms
|
TT OR LC at sight
|
||||
|
Delivery time
|
Within 25 days after receipt the lc or deposit
|
||||
|
Material Quality
|
Tension levelled ,flat ,Free of defects like oil stain,Roll Marks,Waves,Dents
|
||||
|
scratches etc ,A+++ quality, production process passed sgs and bv inspection
|
|||||
|
Application
|
Construction ,Building,Decoration ,Curtain Wall ,Roofing,Mould,Lighting,
|
||||
|
curtain wall, ship building,Aircraft,Oil Tank ,Truck Body etc
|
|||||
|
Packing
|
Standard export worthy wooden pallets
and standard packing is about 2 tons/pallet |
||||
|
Pallet weight also can be as per client's requirement
|
|||||
| Aluminum coil technical parameters (commonly used models) | |||
| Aluminum coil model | Temper | Thickness(mm) | Length(mm) |
| 1050 Aluminum coil | O, H18, H24, etc | 0.1mm-7mm | Customized |
| 1100 Aluminum coil | O - H112 | 0.2mm-7.5mm | Customized |
| 3003 Aluminum coil | H12, H14, H16, H18, H19, H22, H24, H26, H28, O, F | 0.2mm-8mm | Customized |
| 3105 Aluminum coil | O - H112 | 0.2mm-8.0mm | Customized |
| 5005 Aluminum coil | HO, H1x, H2x, H3x, Hxxx | 0.2mm-7.8mm | Customized |
| 5052 Aluminum coil | HO, H1x, H2x, H3x, Hxxx | 0.2mm-7.8mm | Customized |
| 5182 Aluminum coil | HO, H38, H39, H11, H18, etc | 0.2mm-7mm | Customized |
| 6061 Aluminum coil | HO, H38, H39, H11, H18, etc | 0.3mm-8mm | Customized |
| Type | Chemical Composition For several alloys | ||||||||
| Si | Fe | Cu | Mn | Mg | Zn | Ti | other | Al | |
| 1060 | 0.20 | 0.25 | 0.30 | 0.03 | 0.03 | 0.03 | 0.03 | 0.03 | 99.60 |
| 1050 | 0.25 | 0.40 | 0.05 | 0.05 | 0.05 | 0.05 | 0.03 | 0.03 | 99.50 |
| 3003 | 0.60 | 0.70 | 0.05-0.20 | 1.0-1.5 | 0.10 | 0.15 | Remain | ||
| 5052 | 0.25 | 0.40 | 0.10 | 0.10 | 2.2-2.8 | 0.10 | ------ | 0.2 | Remain |
OUR Factory

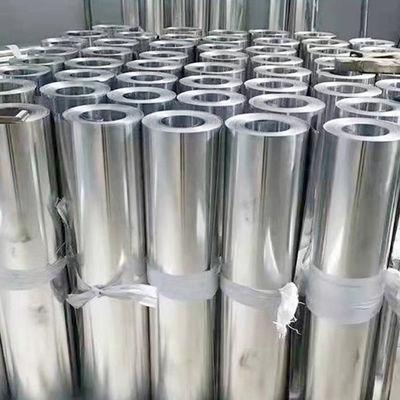

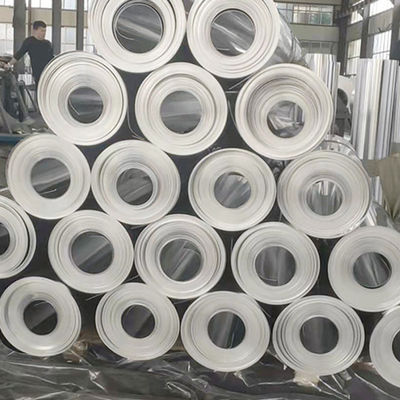

Product Display
Product features
01.Low Density, Lightweight
The density of aluminum and its alloys is close to 2.7g/cm2, about one third of that of iron or copper
02.High Strength
Aluminum and aluminum alloy strength after cold processing can strengthen the matrix strength part of the brand of aluminum alloy can also be strengthened by heat treatment.
03.Strong Plasticity
The surface of aluminum is easy to naturally produce a layer of dense and firm AL 203 protective fim to obtain cast aluminum alloy or deformation aluminum alloy with good processing plasticity.
04.Good Electrical And Thermal Conductivity
Aluminum is second only to silver, copper and gold in conducting electricity and heat
Applications
1. Q: Are you a manufacturer or trading company?
A: We are a professional manufacturer with 1.5 million tons of aluminum annually in China. We have passed the factory inspection by various international organizations and have our own sales team. Welcome to seeing and inspecting our factory
2. Q: Do you have quality control system?
A: Yes,we have iso,bv,sgs certifications and our own quality contorl laboratory.
3. Q: How long is your delivery time?
A: Within 7-15 days after receiving the deposit or L/C at sight. Longer lead time will be required for special designed products.
4. Q: Do you provide samples ? is it free or extra ?
A:Yes, we could offer the sample for free charge but the delivery charges will be covered by our customers.
5. Q: Do you provide after-sale service?
A: We provide after-sales service and offer 100% guarantee on our products.
