ADC 10 is an aluminum alloy that falls under the designation system established by the Japanese Industrial Standards (JIS) for aluminum casting alloys. It is a commonly used alloy with specific composition and properties. Here are some key details about ADC 10 alloy aluminum ingots:
Composition: ADC 10 is an aluminum alloy that primarily consists of aluminum (Al) as the base metal, with specific amounts of other alloying elements. The typical composition of ADC 10 includes silicon (Si), copper (Cu), and a small percentage of other elements. The exact composition may vary slightly depending on specific manufacturer specifications.
Properties: ADC 10 alloy exhibits good castability and reasonable mechanical properties. It offers good fluidity during casting, allowing for intricate and complex molds. It has moderate strength, excellent corrosion resistance, and thermal conductivity. The alloy's properties make it suitable for various casting applications.
Production: ADC 10 alloy ingots are produced through a process that involves carefully blending and melting the appropriate proportions of aluminum and other alloying elements. The molten alloy is then cast into ingot molds or other suitable forms to solidify and create the ADC 10 alloy ingots. The ingots can then be further processed through casting or other forming techniques to manufacture specific components.
Standards and Specifications: ADC 10 alloy ingots are produced following the Japanese Industrial Standards (JIS) for aluminum casting alloys. These standards define the required composition, mechanical properties, and quality criteria for ADC 10 alloy. Adhering to these standards ensures consistent quality and performance of the alloy for various applications.
Recycling: Like other aluminum alloys, ADC 10 can be recycled and reused. Recycling aluminum reduces the need for primary aluminum production and helps conserve resources. Recycled aluminum scrap can be processed and blended with other materials to produce ADC 10 alloy ingots for casting applications.
It is important to note that specific regional or industry standards may exist that define the exact composition and properties of ADC 10 alloy. Therefore, it is advisable to refer to the relevant standards and specifications provided by manufacturers or industry organizations for precise information on ADC 10 alloy aluminum ingots.
| Physical Properties | Metric | US/Imperial |
| Density | 2.76 g/cc | 0.0997 lb/in³ |
| Mechanical Properties | Metric | US/Imperial |
| Hardness, Brinell | 80 | 80 |
| Tensile Strength, Ultimate | 317 MPa | – |
| Tensile Strength, Yield | 159 MPa | – |
| Elongation at Break | 2.5 % | 2.5 % |
| Tensile Modulus | 71.0 GPa | 10300 ksi |
| Poissons Ratio | 0.33 | 0.33 |
| Fatigue Strength | 138 MPa | – |
| Machinability | 50 % | 50 % |
| Shear Modulus | 26.5 GPa | 3840 ksi |
| Shear Strength | 195 MPa | – |
| Charpy Impact | 4.07 J | 3.00 ft-lb |
| Electrical Properties | Metric | US/Imperial |
| Electrical Resistivity | 0.00000640 ohm-cm | 0.00000640 ohm-cm |
| Comparsion of ADC10 and ADC12 | ||
| ADC10 | ADC12 | |
| Composition | Si:7.5%-9.5% | Si:9.6%-12.0% |
| Liquidity | Ok | Best |
| mechanical property | weak than ADC12 | High strength and pressure resistance |
| Grade | Chemical Composition % | |||||||||
| Al≥ | impurities ≤ | |||||||||
| Si | Fe | Cu | Ga | Mg | Zn | Mn | others | Sum | ||
| Al99.9 | 99.90 | 0.50 | 0.07 | 0.005 | 0.02 | 0.01 | 0.025 | - | 0.010 | 0.10 |
| Al99.85 | 99.85 | 0.80 | 0.12 | 0.005 | 0.03 | 0.02 | 0.030 | - | 0.015 | 0.15 |
| Al99.7 | 99.70 | 0.10 | 0.20 | 0.010 | 0.03 | 0.02 | 0.030 | - | 0.030 | 0.30 |
| Al99.6 | 99.60 | 0.16 | 0.25 | 0.010 | 0.03 | 0.03 | 0.030 | - | 0.030 | 0.40 |
| Al99.5 | 99.50 | 0.22 | 0.30 | 0.020 | 0.03 | 0.05 | 0.050 | - | 0.030 | 0.50 |
| Al99.00 | 99.00 | 0.42 | 0.50 | 0.020 | 0.03 | 0.05 | 0.050 | - | 0.050 | 1.00 |

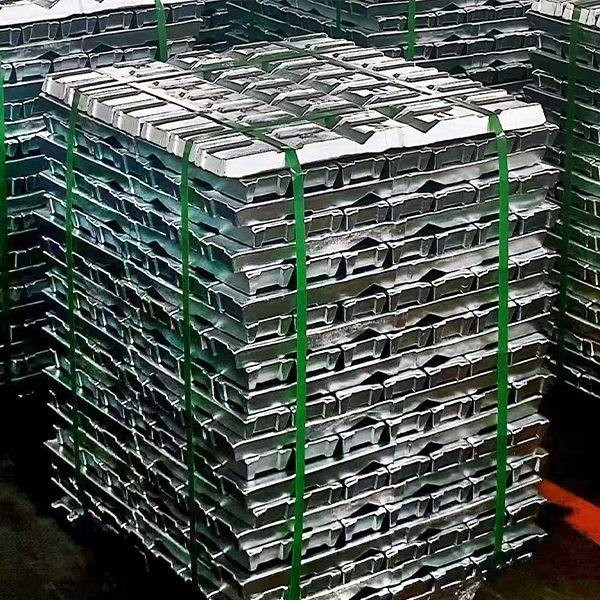

Packaging and Transportation
Application scenarios
Applications: ADC 10 alloy aluminum ingots are commonly used in the manufacturing of cast components across different industries. It finds applications in automotive parts such as engine blocks, cylinder heads, transmission cases, and other structural components. Additionally, it is used in the production of electrical housings, machinery components, and general-purpose castings.
